LED backlit mirrors are wall-mounted bathroom mirrors with integrated LED light panels hidden behind or around the glass, producing a soft halo or edge-lit glow. Installation in Dallas costs $300 to $1,500 for the fixture plus $100 to $300 for professional mounting and electrical connection (HomeGuide 2025). Most models use 24V low-voltage drivers with IP44-rated sealed housing for bathroom use.
LED backlit mirrors have become the default choice for modern Dallas vanity remodels — they replace an overhead light fixture, eliminate shadow under the eyes, and give a bathroom a designer feel without any tile or drywall work. This guide walks through how they work, what they cost in DFW, and how Infinity Glass & Glazing installs them.
Custom mirrors in Dallas and bathroom vanity mirror custom sizing are related guides if you are still narrowing down the style.
What Is an LED Backlit Mirror and How Does It Work?
An LED backlit mirror is a mirror with a low-voltage LED strip mounted around its back perimeter or edge, projecting light outward onto the wall (halo style) or through a frosted border (edge-lit style). A 24V driver steps household 120V down to a safe low voltage, and most units include a capacitive touch switch, dimmer, and anti-fog defogger wired into the same circuit.
The mirror itself is standard 4mm or 6mm silvered glass. What makes it "backlit" is the LED strip bonded to the back panel. The strip emits light that escapes around the mirror's edges (halo effect) or through an etched/sandblasted frosted border. Because LEDs run cool and use very little current, the whole unit stays thin — typically 1.2 to 1.6 inches deep on the wall.
The electrical connection is simple on paper but requires a licensed electrician in Texas: the driver plugs into a junction box behind the mirror, with a dedicated hot-neutral-ground connection. On a retrofit, we often reuse the existing bath-bar wiring — this saves several hundred dollars versus running a new circuit.
75%
energy reduction using LED vs incandescent bath lighting (DOE 2025)
What Are the Benefits of LED Backlit Mirrors in Bathrooms?
LED backlit mirrors deliver four practical benefits: they replace overhead vanity lighting (shadow-free grooming), cut lighting energy use by up to 75% versus incandescent bulbs, last 25,000 to 50,000 hours before needing replacement, and add a high-end visual layer to the vanity at a mid-range price. The integrated dimmer also lets you adjust brightness for different times of day.
Energy efficiency. LEDs draw a fraction of the power of incandescent or halogen vanity bulbs. A typical 36x30-inch backlit mirror pulls 20-35 watts at full brightness — about the same as a single traditional vanity bulb, but spread evenly around the face (DOE 2025).
Shadow-free lighting. Overhead lights cast shadows under the brow, nose, and chin — exactly where you need to see clearly for shaving, makeup, and contact lenses. A perimeter-lit mirror wraps the face in even light from all sides.
Lifespan. Quality LED strips are rated for 25,000 to 50,000 hours. At 3 hours per day, that is 22 to 45 years before the LEDs dim noticeably — essentially the life of the mirror itself (DOE 2025).
Resale appeal. DFW real estate agents flag LED mirrors as a "designer finish" on listings. The Houzz 2025 Bathroom Trends Study found that upgraded vanity lighting is one of the top three renovation items buyers notice first (Houzz 2025).
Types of LED Backlit Mirrors Available for Dallas Homes
The four main styles are: halo-lit (continuous glow around the perimeter), edge-lit (frosted border that glows inward), top-and-bottom lit (two light bars at top and bottom only), and fully frosted illumination panels. Shapes include rectangle, round, oval, and arched. Color temperature options typically range from 2700K warm white to 6500K cool daylight, with premium models offering adjustable CCT.

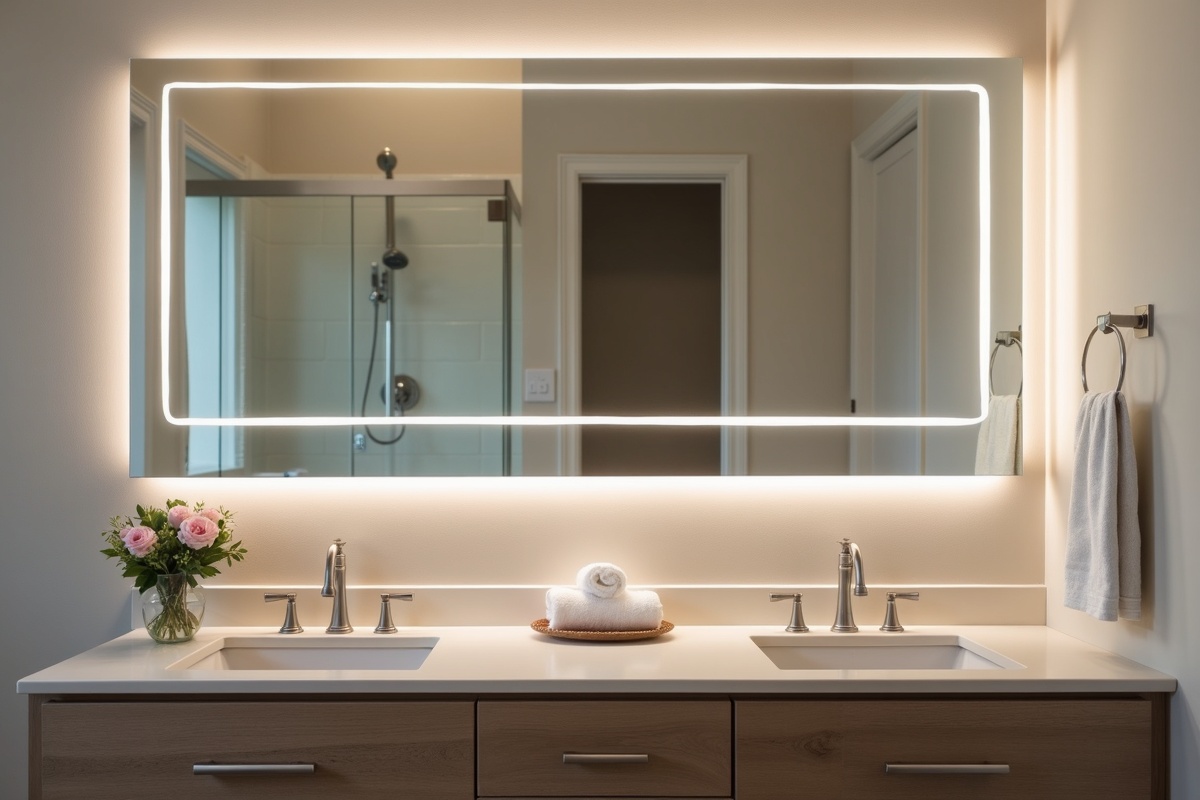

Halo-lit (most popular in DFW). The LED strip is recessed behind the mirror edge, and light projects outward onto the wall. The mirror appears to float with a glowing outline. Works in any style bathroom — modern, transitional, or contemporary.
Edge-lit with frosted border. A 1 to 2-inch frosted sandblasted border at the mirror's outer edge glows inward. Cleaner, more minimalist than halo. Best for modern bathrooms.
Front-lit (top/bottom bars). Two LED bars run horizontally at the top and bottom, visible through the mirror's frosted strips. Provides more direct face lighting — best for detailed makeup work.
Adjustable color temperature (CCT). Premium units let you tap the touch switch to cycle between 3000K (warm, for evenings), 4000K (neutral), and 6000K (cool daylight, for makeup). Roughly a $150-$300 upcharge over fixed-color models.
How Much Does LED Backlit Mirror Installation Cost in Dallas?
Total installed cost for an LED backlit mirror in Dallas ranges from $400 to $1,800 depending on size, features, and electrical work. The mirror fixture runs $300 to $1,500, professional installation with a junction box tie-in adds $100 to $300, and a brand-new dedicated circuit (rare) adds another $250 to $500 (HomeGuide 2025).
| 24x32 in. rectangle, halo |
| 30x36 in. rectangle, halo + defogger |
| 36x48 in. rectangle, CCT adjustable |
| 60 in. round or arched, premium |
| Custom cut / oversized fabrication |
What Is the Installation Process for a Lighted Bathroom Mirror?
Professional installation takes 2 to 4 hours and includes: turning off the circuit, removing the old mirror and fixture, installing a recessed junction box if needed, mounting the cleat or bracket to studs or anchors, connecting the driver wiring, setting and leveling the mirror, and testing the touch switch, dimmer, and defogger. A licensed electrician handles the 120V side; our glazier handles the mirror itself.
- 1
Power off and remove old fixture
Turn off the bathroom circuit at the panel, verify dead with a tester, and remove any existing mirror and wall-mounted light fixture. - 2
Prep the wall and junction box
Patch drywall where needed. If no junction box exists behind the mirror, cut in a recessed old-work box and pull the existing bath-bar wire down to it. - 3
Mount the cleat or bracket
Locate studs with a magnetic stud finder. Secure the manufacturer's cleat into at least two studs with lag screws (or use heavy-duty toggle anchors rated for the mirror weight if studs are not in position). - 4
Wire the LED driver
Connect hot, neutral, and ground from the junction box to the driver's line side. Route the low-voltage output lead to the mirror's connector. Tuck the driver into the wall cavity or recessed box. - 5
Hang and level the mirror
Lift the mirror onto the cleat. Check level with a 24-inch bubble level. Adjust the cleat if the mirror is not plumb. - 6
Test and seal
Restore power. Test the touch switch, dimming range, CCT cycle (if equipped), and defogger. Run a bead of clear silicone along the bottom edge to keep splashes from wicking behind the mirror.
How to Choose the Right LED Mirror Size for Your Vanity
The mirror should be 2 to 4 inches narrower than the vanity on each side (roughly 80 to 90% of the vanity width) and 30 to 42 inches tall depending on ceiling height. For a 36-inch vanity, choose a 28 to 32-inch wide mirror. For a 60-inch double vanity, choose either one 52 to 56-inch mirror or two 22 to 28-inch individual mirrors. The mirror bottom should sit 5 to 8 inches above the countertop.
Measuring rules of thumb for DFW bathrooms:
- 32-36 in. vanity: 24-32 in. wide mirror, 30-36 in. tall
- 48 in. vanity: 40-44 in. wide mirror, 30-42 in. tall
- 60 in. vanity: 52-56 in. wide mirror, or two 22-28 in. mirrors
- 72 in. double vanity: 64-68 in. wide mirror, or two 28-32 in. mirrors
For vanities with 9-foot or taller ceilings, go 36 to 48 inches in mirror height to balance the vertical space. If your vanity has pendant lights hanging above it, subtract another 4-6 inches from the max mirror height so the two fixtures do not visually collide.
Are LED Backlit Mirrors Worth It for DFW Bathrooms?
For most Dallas homeowners doing a vanity refresh, LED backlit mirrors are worth the upgrade. They cost $200-$500 more than a standard mirror, but they replace an overhead fixture (eliminating a $150-$400 light purchase), use 75% less electricity, and add perceived value to the bathroom that realtors flag as a "designer touch." The lighted mirror market is projected to grow at 8.4% CAGR through 2030 (Grand View Research 2025), which signals where buyer expectations are heading.
The one caveat: if your current bathroom has no existing vanity lighting circuit anywhere on that wall, you need a new circuit run from the panel — which can add $250-$500 in electrical work. Before committing, our team does a free site visit to confirm the existing wiring and give you a firm installed price.
Frequently Asked Questions About LED Backlit Mirror Installation
How long do LED backlit mirrors last before the lights need replacing?
Quality LED strips are rated for 25,000 to 50,000 hours of operation, which works out to 22-45 years at three hours of use per day. In practice, the mirror glass typically fails (silvering degradation from humidity) before the LEDs do. Most premium manufacturers offer 5-year warranties on the LED component specifically.
Can LED backlit mirrors be wired into the existing bathroom electrical?
Yes, in most cases. If your vanity currently has a wall sconce, bath bar, or ceiling fixture controlled by a switch, a licensed electrician can tap that same circuit for the mirror's junction box — saving $250-$500 versus running a new dedicated circuit. The existing switch can continue to control the mirror, or we can rewire it to be always-hot so the mirror's touch switch controls itself.
Do LED mirrors work in humid bathroom environments?
Yes — reputable LED mirrors carry an IP44 or higher ingress protection rating, meaning the LED housing is sealed against splashing water and humidity. Avoid cheap imports with no IP rating; they can short out within a year. Infinity only installs mirrors with IP44+ ratings in DFW bathrooms.
What color temperature of LED is best for a bathroom vanity?
4000K (neutral white) is the all-around best choice for most bathrooms — it is bright enough for grooming without being harsh. 3000K (warm white) works well in evening-use master bathrooms for a hotel feel. 5000-6000K (cool daylight) is preferred for detailed makeup application. Mirrors with adjustable CCT let you switch between all three with a tap, and are worth the roughly $150 upcharge.
Can you install an LED backlit mirror over an existing mirror?
No — the existing mirror must come down first. LED mirrors need the wall prepped for a flush junction box and the mounting cleat to attach directly to studs. Mounting over an existing mirror creates gaps that collect moisture, throws off the mirror's plumb, and voids the manufacturer's warranty. Removal of the old mirror is typically included in our installation service.
Also see our custom mirrors guide for Dallas and our bathroom vanity mirror sizing guide for more detail on fitting the right mirror to your vanity.
Ready to upgrade your Dallas bathroom with an LED backlit mirror? Infinity Glass & Glazing installs illuminated vanity mirrors throughout Dallas, Fort Worth, Plano, Frisco, McKinney, and the entire DFW metro. We handle the mirror, the electrical coordination, and the finish work. Request a free LED mirror quote and we will visit your home, confirm the wiring, and give you a firm installed price.
