Glass railing installation in Texas costs $150–$600 per linear foot installed, depending on system type, glass specification, and whether the installation is interior or exterior (HomeGuide 2025). Base shoe systems (glass panels set in aluminum channels at the floor) are the most common; point-fixed systems (glass panels supported by standoffs attached to a structural post or wall) are the premium alternative.
Glass railings are one of the highest-impact visual upgrades in commercial and residential construction — the transparent barrier preserves sightlines, multiplies light, and signals quality in a way that traditional metal railings cannot. In DFW commercial projects, they appear at mezzanines, interior stairways, and elevated restaurant platforms. In residential projects, they're common at pool decks, elevated patios, and open stairways.
This guide covers the glass railing system types used in Texas, code requirements under the International Building Code, and what to expect from the installation process.
[INTERNAL-LINK: Commercial glass installation DFW -> /blog/commercial-glass-installation-dfw]
What Types of Glass Railing Systems Are Installed in Texas?
Three glass railing system types are commonly installed in Texas: base shoe systems (aluminum channel anchored to structure, glass set in channel), standoff/point-fixed systems (glass panels supported by through-glass hardware attached to structural posts), and frameless cable-hybrid systems (glass panels alternating with stainless cable spans). Each offers different aesthetic and structural profiles.

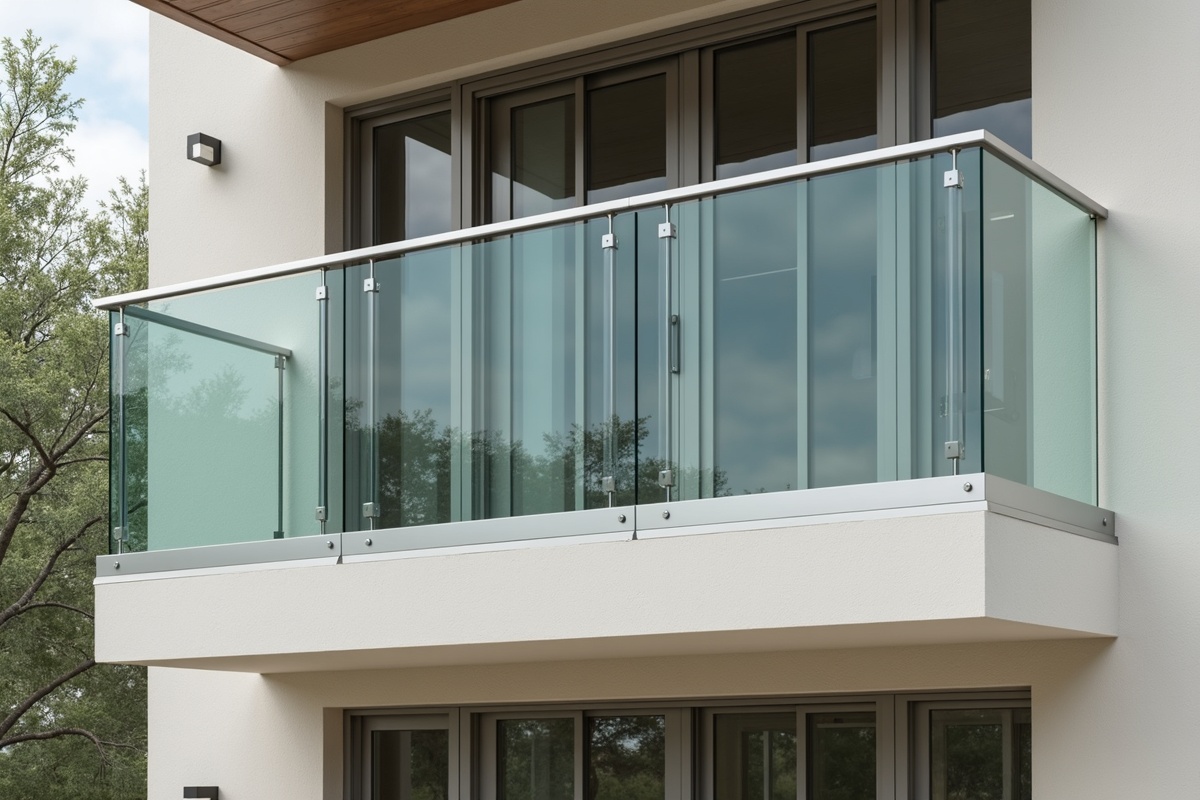

Base shoe / channel systems:
- Aluminum U-channel (the "base shoe") anchored to the floor, deck, or stair stringer
- Glass panels set in the channel with rubber setting blocks and secured with structural silicone or mechanical set screws
- Top rail options: continuous cap rail in aluminum or stainless steel, or handrail-only with no cap rail
- Most common system in DFW commercial construction
- Cost: $150–$350 per linear foot installed
- Best for: commercial stairways, mezzanines, retail environments

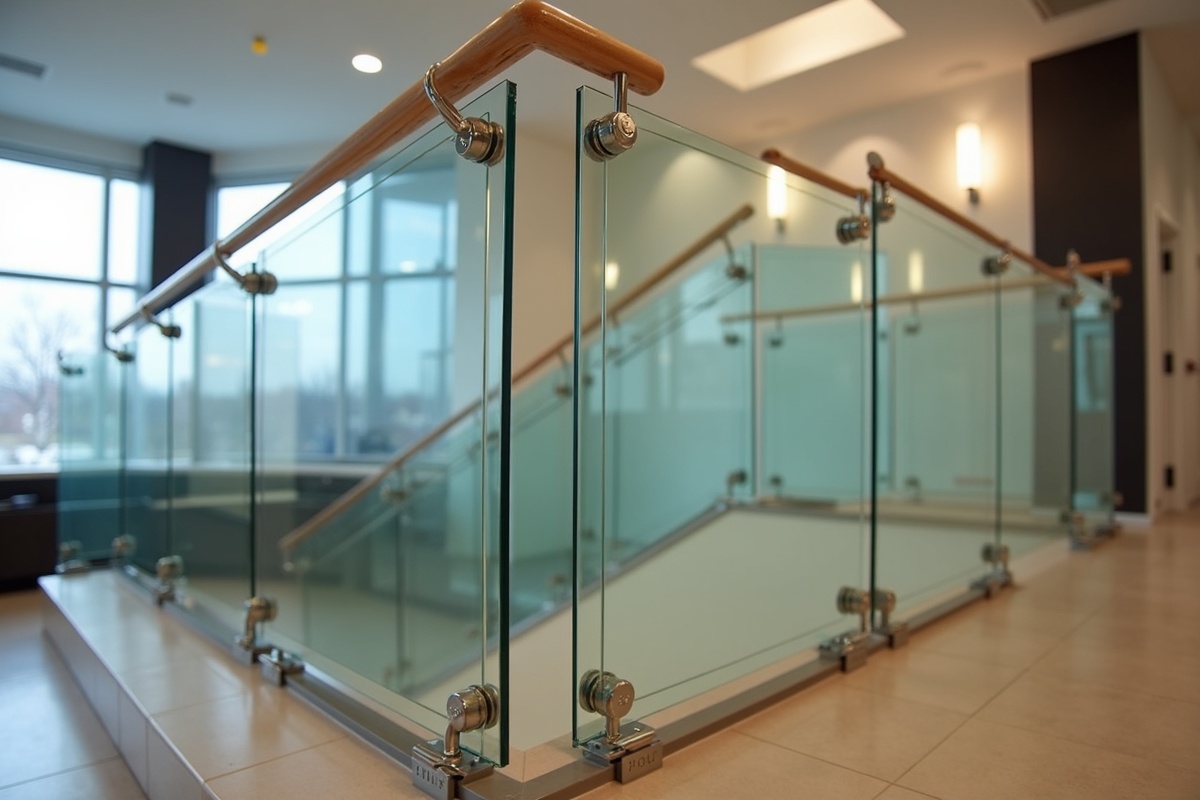

Standoff / point-fixed systems:
- Glass panels supported by circular or rectangular standoff fittings bolted through the glass at pre-drilled holes
- Standoffs attach to structural posts or a wall
- Maximum transparency — no visible channel or frame at the floor line
- Requires precise structural post layout and glass drilling to tight tolerances
- Cost: $300–$600 per linear foot installed
- Best for: premium commercial lobbies, high-end residential, architectural glass applications
Frameless with handrail only:
- Glass panels set in base shoe channel with a graspable handrail attached at top (code-required for stairs)
- The handrail is the only element visible above the glass plane
- Available in round and rectangular profiles in stainless or aluminum
- Cost: $200–$400 per linear foot installed
$150–$600
glass railing installation cost per linear foot in Texas — system type and glass specification are primary cost drivers
What Are the Code Requirements for Glass Railings in Texas?
Glass railings in Texas must comply with the International Building Code (IBC) for commercial applications and the International Residential Code (IRC) for residential (IBC/ICC 2021). Key requirements: minimum 42-inch guard height for commercial (36 inches residential), 200 lb/linear foot top rail load resistance, and tempered or laminated safety glass meeting CPSC 16 CFR 1201 (CPSC 2025).
IBC requirements applicable to Texas commercial glass railing installations:
Guard height: 42 inches minimum from the walking surface to the top of the rail in commercial applications. Residential permits 36 inches minimum for guards above 30-inch drops.
Top rail load: 200 lbs/linear foot applied horizontally and vertically at the top rail. The base shoe channel, glass panel, and structural anchoring must collectively resist this load — engineering documentation is often required for commercial permits.
Glass specification: Must be tempered or laminated safety glass complying with CPSC 16 CFR 1201 (Category II — the higher loading category for railing applications). Laminated tempered glass (two tempered lites bonded with an interlayer) is preferred for overhead applications where glass fragments could fall on occupants below.
Openings: Guards must not have openings that allow a 4-inch sphere to pass. This eliminates most traditional baluster configurations and is one reason glass panels are used — a solid glass panel has no openings.
Wet locations: Exterior glass railings, pool deck railings, and other wet-location applications require hardware rated for exterior/wet service — typically 316 stainless steel (marine grade) rather than standard 304 (GlassBuild America 2025).
What Glass Is Used in Texas Railing Systems?
Texas glass railing installations most commonly use 3/8-inch or 1/2-inch tempered clear glass for interior applications, and 3/8-inch laminated tempered glass for exterior and overhead applications. Glass is always safety-rated (CPSC 16 CFR 1201 Category II) — annealed glass is not permitted in railing applications.
Glass specifications by application:
Interior stairway railings: 3/8-inch tempered clear glass is the standard. At typical railing panel heights of 36–42 inches, 3/8-inch glass has adequate lateral stiffness. 1/2-inch is used for taller panels or when more stable feel is desired.
Exterior/pool deck railings: 3/8-inch tempered or 3/8-inch laminated tempered. Laminated is preferred at pool decks and elevated decks where broken glass fragments would be hazardous. Laminated glass holds together when broken (the interlayer retains fragments).
Overhead applications (glass floors, skylight rails): Laminated glass required — broken panels above occupied areas must retain their integrity. Engineering specifications govern glass thickness in these applications.
Low-iron glass option: Standard clear tempered has a slight green tint visible at panel edges. Low-iron (ultra-clear) glass eliminates this for railing systems where edge clarity matters — typically specified on premium residential and hospitality projects.
How Long Does Glass Railing Installation Take in Texas?
A standard glass railing installation in DFW takes 2–4 weeks from contract to completed installation — approximately 1 week for engineering and shop drawing (on commercial projects), 2–4 weeks for glass fabrication, and 1–3 days of on-site installation depending on railing length.
Installation timeline:
Week 1: Measurement, shop drawing production (on commercial projects where drawings are required for permit). Residential projects often skip formal engineering for simple base shoe systems.
Weeks 1–3: Glass fabrication. Tempered panels are cut to exact dimensions, edges polished, holes drilled (for point-fixed systems), and tempering oven run. Standard tempered glass fabricates in 2–3 weeks.
Installation day(s): Base shoe anchored to structure, panels set and secured, handrail installed and connected. A 40-linear-foot commercial railing installation typically takes 1–2 days of on-site work.
Infinity Glass & Glazing installs glass railing systems across DFW — interior stairways, exterior decks, mezzanines, and commercial spaces. Serving Dallas, Fort Worth, Corinth, Denton, Frisco, and surrounding areas. Get a railing estimate or call (940) 279-1197.
How much does glass railing installation cost in Texas?
Glass railing installation in Texas costs $150–$600 per linear foot installed. Base shoe channel systems run $150–$350/linear foot. Point-fixed standoff systems run $300–$600/linear foot. Exterior and wet-location installations add cost due to 316 stainless hardware requirements. A 40-linear-foot interior commercial railing typically runs $8,000–$14,000 installed.
What code requirements apply to glass railings in Texas?
Texas commercial glass railings must comply with IBC requirements: 42-inch minimum guard height, 200 lb/linear foot top rail load capacity, and CPSC 16 CFR 1201 Category II safety glass (tempered or laminated). Residential applications follow IRC requirements: 36-inch minimum height for guards above 30-inch drops. Commercial installations typically require building permits and engineering documentation.
What glass thickness is used for railings?
Glass railing panels in Texas are typically 3/8-inch or 1/2-inch tempered clear glass for interior applications. Exterior and pool deck applications use laminated tempered glass (two tempered lites with an interlayer) to retain fragments when broken. Low-iron glass is available for applications where the green edge tint of standard clear glass is undesirable.
Do glass railings require a building permit in DFW?
Yes — commercial glass railing installations in DFW municipalities require building permits. Residential glass railing systems above a certain height or on decks may also require permits depending on the specific city and project scope. A qualified glass railing contractor handles permit applications and provides required engineering documentation for structural review.
