Custom Frameless Shower Design: From Concept to Installation in DFW

A custom frameless shower in DFW is designed to your specific space, glass preferences, and hardware choices — not selected from a catalog. The process starts with an in-home measurement, moves through glass selection and fabrication (3-5 business days), and ends with installation in 2-4 hours. Most homeowners in Corinth, Dallas, and Fort Worth complete the full process in under two weeks.

Stock shower doors exist in predetermined sizes. If your opening is 24, 28, or 32 inches wide, a stock door might work. But most bathrooms in the DFW area don't have perfectly square openings with plumb walls and level floors — especially in older homes. Custom fabrication is how you get glass that fits exactly, looks intentional, and lasts for decades without gaps, leaks, or adjustments.

This guide walks through every stage of designing a custom frameless shower, from the first measurement to the morning of your first shower in the new enclosure.

[INTERNAL-LINK: High-end enclosure features and costs -> /blog/high-end-glass-shower-enclosure-texas]

What Makes a Shower Truly Custom?

A truly custom shower is measured, designed, fabricated, and installed as a single project for one specific space. Every dimension is field-measured. Glass panels are cut to exact specifications — not trimmed from a stock size. Hardware is selected for the design, not chosen from a limited preset. The result fits perfectly because it was made for that opening and no other.

Custom fabrication covers four key variables:

Opening width: Your shower might be 31.5 inches, 43.25 inches, or 76 inches. Custom glass is cut to that exact measurement. Stock doors accommodate only preset widths with limited adjustment range.

Opening height: Shower ceilings in DFW homes vary from 79 inches to 96 inches and above. Custom panels are fabricated to the actual height, with proper clearance for your specific threshold or curb.

Wall plumb and squareness: Few shower walls are perfectly plumb. During measurement, technicians check each wall's plumb and squareness, and compensate in the glass cut so panels sit flat against the wall surface with a proper silicone seal — no gaps, no shimming.

Configuration: A single door, a door with one fixed panel, a corner enclosure with two glass panels, a neo-angle, a bypass sliding setup, a walk-in with no door — all are possible with custom fabrication. Stock options cover only the most common configurations.

How Do You Design Around Your Specific Space?

Start with the opening dimensions, then work outward to configuration, then hardware, then glass options. The opening constrains everything else. Configuration choices within that space determine how many pieces of glass you need. Once you know the configuration, hardware selection and glass grade are the remaining decisions.

Design decisions in order:

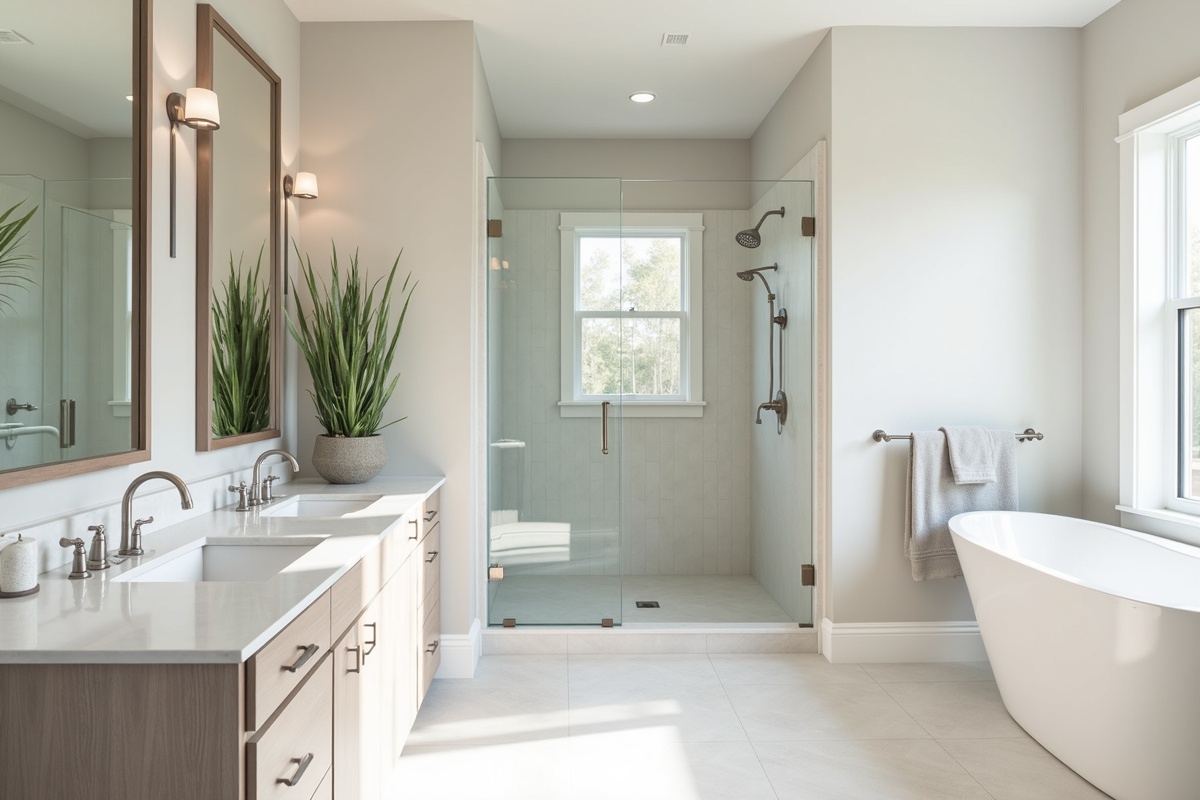

Step 1: Configuration — Does the shower have one opening or two? Is there a wall on each side, or is one side open? Is there a curb or is it curbless? A corner shower needs two glass panels plus a door; a wet room might need ceiling channels and no door at all.

Step 2: Door swing direction — For hinged frameless doors, does the door swing in, out, or both? Out-swing is most common. In-swing works in larger showers. Bi-directional pivots work in either direction. Make sure the door doesn't hit the toilet, vanity, or towel bar when fully open.

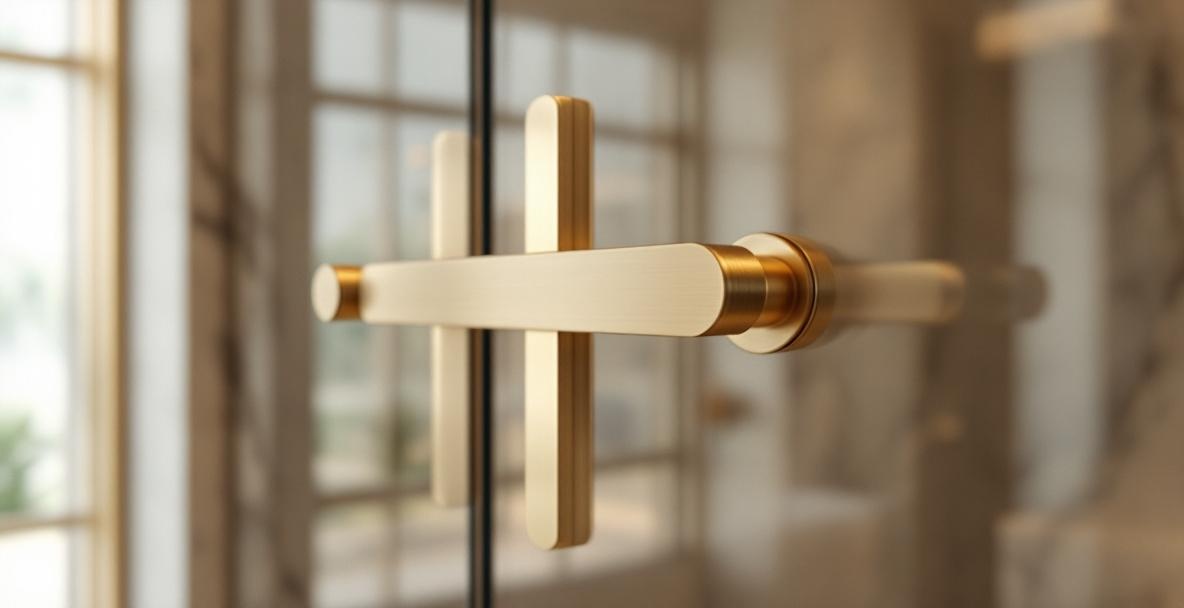

Step 3: Hardware finish — Matte black, brushed nickel, chrome, brushed gold, or oil-rubbed bronze. Match or coordinate with your bathroom faucets and other fixtures. Hardware finish is a permanent decision once holes are drilled and the glass is tempered (CPSC 16 CFR 1201).

Step 4: Glass grade and thickness — 3/8-inch or 1/2-inch. Standard clear or low-iron. Clear or privacy frosted. For most DFW homes, 3/8-inch standard clear is the practical choice. For larger panels, wider openings, or a premium result, 1/2-inch low-iron is worth the additional cost.

Which Glass Options Are Available for Custom Designs?

The most important glass decisions are thickness and iron content — everything else is a finish or pattern choice. Three-eighths-inch glass is the standard for frameless; 1/2-inch adds rigidity and visual weight for premium projects. Low-iron glass removes the green tint visible at cut edges for true optical clarity.

Glass options in depth:

Standard clear 3/8-inch: The workhorse of custom frameless showers. Strong, properly rigid for most door widths, and readily available from all quality fabricators. The slight green tint at edges is barely noticeable on most installations.

Standard clear 1/2-inch: Preferred for panels wider than 30 inches, full-height walls, and any installation where the glass needs to look and feel substantial. Hardware must be specified for 1/2-inch glass — not all hinge and clamp configurations fit both thicknesses.

Low-iron (Starphire/Optiwhite) 3/8 or 1/2-inch: Optically clear with no green cast. Visible improvement on 1/2-inch glass where edge thickness makes standard glass tint obvious. Adds 15-20% to glass cost.

Frosted/satin privacy: Available in full-panel frosted or stripe and pattern variations. Popular for master baths where the shower faces the bedroom or for guest bathrooms where privacy is a priority.

Rain and reeded patterns: Obscuring patterns that add visual texture while maintaining light transmission. Adds a design element beyond simple clear glass without full opacity.

How Long Does the Design-to-Installation Process Take?

Most custom frameless showers in DFW are completed within 7-14 days from first measurement to installation. Fabrication takes 3-5 business days after measurement confirmation. Installation takes 2-4 hours. The timeline extends slightly for specialty glass (low-iron, frosted) or complex configurations with multiple panels.

Typical process stages:

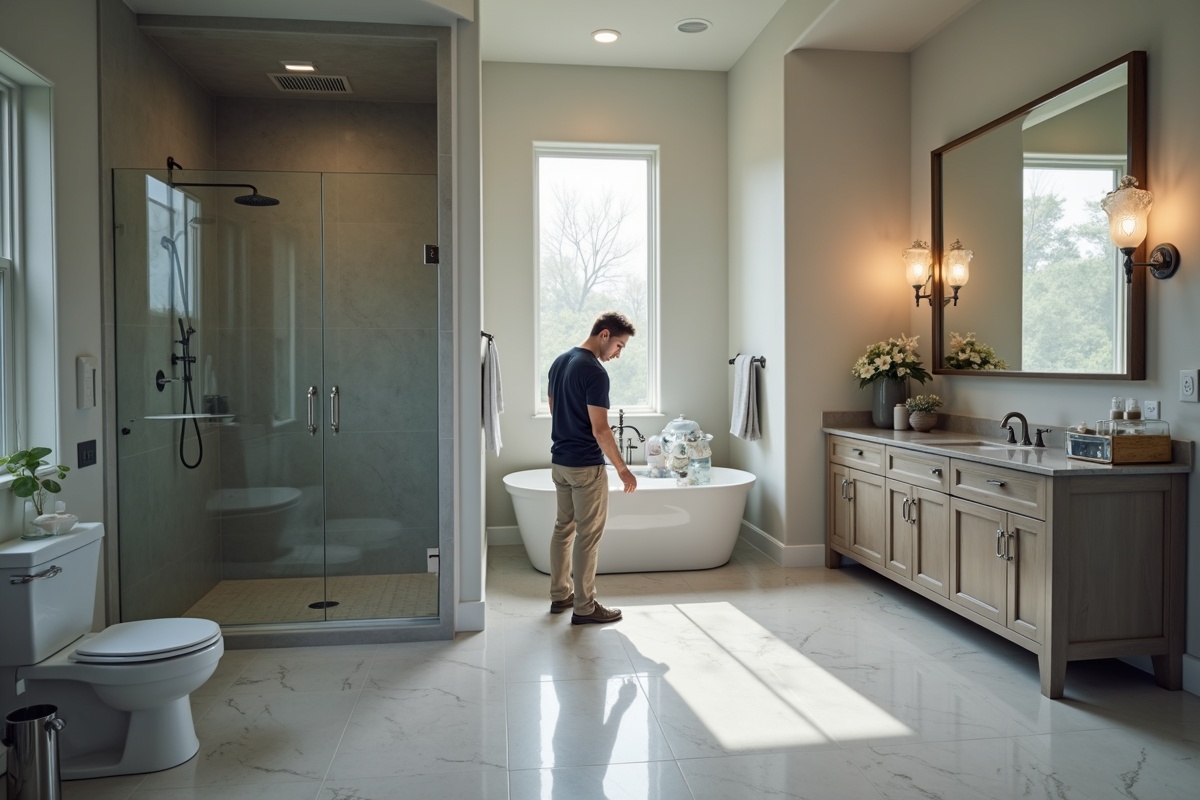

1. Measure appointment (Day 1): A technician visits to measure the opening, check wall plumb, confirm configuration details, and discuss glass and hardware options. Takes about 30-45 minutes.
2. Quote and confirmation (Days 1-2): You receive a detailed written quote with glass specs, hardware, configuration, and pricing. Once confirmed and deposit received, fabrication begins.
3. Glass cutting and finishing (Days 2-5): Glass is cut to exact dimensions, edges polished (and mitered if applicable), and sent for tempering. Hardware holes are drilled before tempering.
4. Hardware procurement (parallel): Hardware is sourced from the fabricator's stock or ordered if a specialty finish is selected. This usually runs parallel with glass fabrication.
5. Installation appointment (Day 7-10): Installation takes 2-4 hours for most enclosures. Silicone is applied at all seals and needs 24 hours to cure before the shower is used.

What Does a Custom Frameless Shower Cost in DFW?

Custom frameless shower enclosures in DFW cost $900 to $4,200+ installed, depending on size, glass grade, and hardware selection (HomeGuide 2025). A single custom hinged door runs $900-$1,500; a two-panel corner enclosure runs $1,500-$2,800; a full multi-panel enclosure with premium glass and hardware runs $2,500-$4,200+.

The biggest variables within each range: hardware finish (chrome vs. matte black vs. brushed gold adds $150-$400), glass thickness upgrade (3/8 to 1/2-inch adds $200-$500), and whether mitered corners are included for corner configurations.

[INTERNAL-LINK: Full cost breakdown for Texas -> /blog/frameless-shower-door-cost-texas]

How to Work With a Local DFW Fabricator

Working with a local in-house fabricator means one company is accountable from measurement through installation — no hand-offs to subcontractors, no glass outsourced to a third-party shop with different tolerances. In DFW, Corinth and the surrounding area have several shops capable of this. The questions to ask separate the best from the rest.

Questions to ask any shop before signing a quote:

• "Do you cut and finish the glass in your own shop, or outsource to a supplier?"
• "Are your measurements and installations done by the same team?"
• "Is a mitered corner available on corner enclosures, and what does it add?"
• "What glass brands do you stock for low-iron options?"
• "What hardware brands do you carry, and are they solid brass or zinc alloy?"

A shop that fabricates in-house will answer these questions confidently. A company that outsources glass cutting and buys hardware from a budget supplier will deflect or give vague answers.

Infinity Glass & Glazing designs and fabricates custom frameless shower enclosures entirely in-house at our Corinth shop. We serve the full DFW metroplex including Dallas, Fort Worth, Denton, Frisco, McKinney, Southlake, Flower Mound, Keller, and Lewisville. Get a free measurement or call (940) 279-1197.
