Shower Door Bottom Rail Installation: Track, Threshold & Sweep Options

Shower door bottom rails serve three functions: they direct water back into the shower, seal the gap between the glass door and the curb, and provide an anchor point for door hardware on framed and semi-frameless doors. Frameless doors typically skip the bottom rail entirely and use only a vinyl sweep on the glass edge. Rail replacement costs $80 to $250 in DFW depending on rail type and length (HomeGuide 2025), while a custom frameless door with no rail uses only a $15 to $40 sweep.

The term "bottom rail" covers multiple components that often get confused: the threshold (the raised curb at the base of the shower), the bottom track or rail (the metal channel the door fits into on framed doors), and the sweep or wipe (the vinyl seal that contacts the curb). This guide untangles the terminology, walks through installation steps, and explains when each option is the right choice.

What Is a Shower Door Bottom Rail and What Does It Do?

A shower door bottom rail is the horizontal component at the base of a shower door system. On framed doors it is an aluminum extrusion that holds the glass and routes water. On semi-frameless doors it is a lower-profile channel or clamp strip. On fully frameless doors the "bottom rail" is usually just a vinyl sweep that slides onto the glass edge, with the curb tile itself acting as the threshold.

The bottom rail handles three jobs:

• Water management — channels water back into the shower pan instead of letting it roll out onto the bathroom floor
• Structural anchor — on framed doors, holds the glass panel and provides rigidity
• Sealing surface — creates a closing surface against which the door's sweep or seal compresses

Types of Shower Door Bottom Rails and Thresholds

Standard aluminum track

Used on most framed shower doors. The track sits on the tiled curb, bedded in silicone, and accepts the bottom edge of the glass door. Tracks include an integrated drip channel that directs water back into the shower. This is the most leak-resistant option but the most visible.

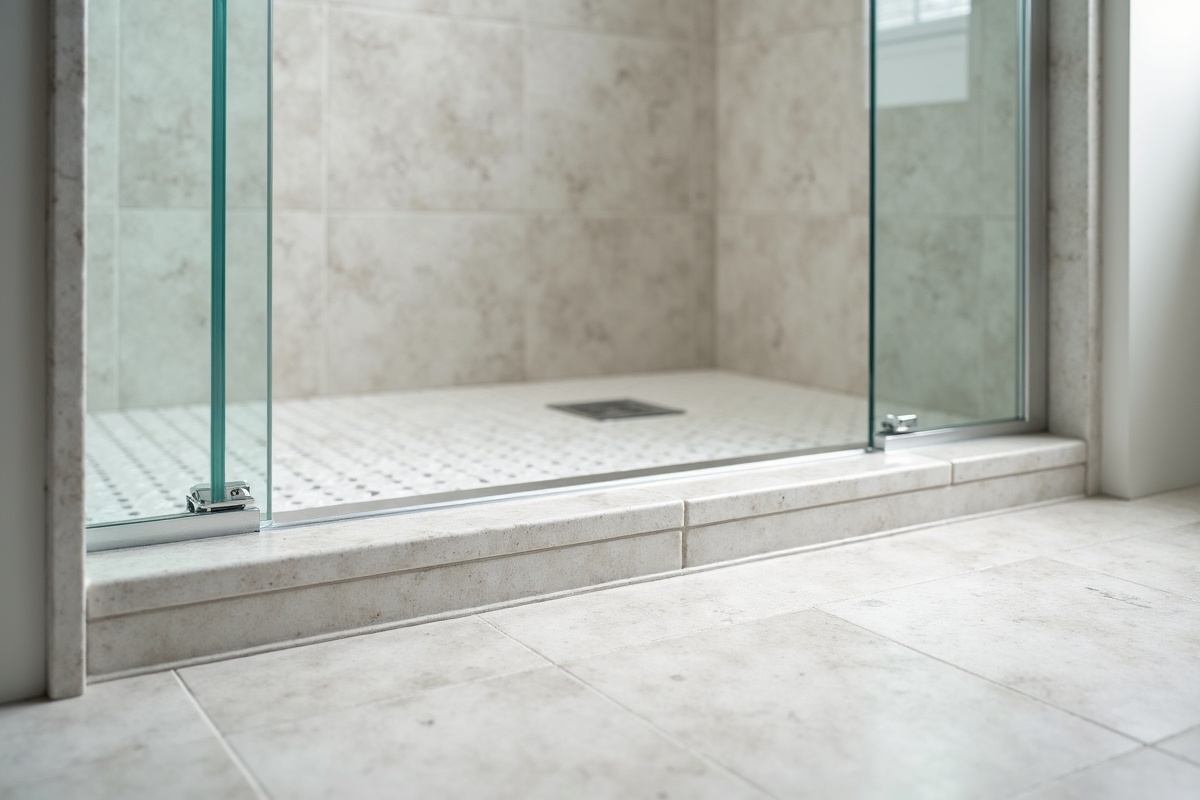

Low-profile channel

Semi-frameless doors use a thinner aluminum channel — typically 1/4 to 3/4 in. tall — that preserves some of the clean look of a frameless door while still providing water management. These are common in renovation work where an existing shower pan or curb does not perfectly match a full frameless conversion.

Vinyl sweep on glass (frameless)

Fully frameless swing doors skip a metal rail entirely. The glass panel sits above the tiled curb with a U-shaped vinyl sweep clipped onto the bottom edge of the glass. The sweep compresses against the curb when the door closes, creating a seal. This is the most minimal look but requires a well-pitched curb to manage water.

Curbless walk-in drain strip

For true curbless zero-threshold showers, a linear drain at the shower entry replaces the curb entirely. The shower pan is pitched toward the drain, and the glass panel may have no bottom seal at all. This is the aging-in-place and universal design standard per CAPS guidelines (CAPS 2024).

Low-Threshold vs Standard Threshold: Which Is Better for Your Shower?

Low-threshold showers (1/4 to 3/4 in.) and zero-threshold walk-in showers are the preferred choice for aging-in-place bathrooms per CAPS guidelines. Standard thresholds (1 to 2 in.) are more common in traditional bathrooms and offer better water containment with simpler glass installation. The right choice depends on who uses the bathroom, the shower pan system, and the drain design.

Choose a standard threshold if:

• The shower is used by fully mobile adults and children
• The existing shower pan has a traditional raised curb
• Keeping remodel costs low is a priority (standard thresholds are the cheapest option)
• The bathroom layout directs water toward the curb rather than a linear drain

Choose a low or zero threshold if:

• Anyone in the household uses mobility aids (cane, walker, wheelchair) or is aging in place
• You want a premium, modern look with a continuous floor plane
• The shower pan is designed or can be rebuilt to pitch toward a linear drain
• You value the wet-room aesthetic seen in luxury hotel bathrooms

How Is a Shower Door Bottom Rail Installed?

1. 1

   Verify the curb is level

   Use a 4-foot level across the full curb length. Low spots create puddles and pinhole leaks. If the curb is out of level by more than 1/8 in. over 36 in., it should be relaid before the rail goes in.
2. 2

   Dry-fit the rail on the curb

   Position the full-length aluminum track and confirm it follows the curb line without rocking. Mark anchor locations lightly with a pencil.
3. 3

   Pre-drill anchor holes in tile

   Use a diamond-tip drill bit with water lubrication. Drill slowly — tile cracks when heat builds up from dry drilling.
4. 4

   Apply a bead of silicone

   Run a continuous bead of 100% neutral-cure silicone along the curb where the rail will sit. This is both an adhesive and a waterproofing layer.
5. 5

   Set the rail and anchor

   Press the rail into the silicone and drive stainless steel anchors through the pre-drilled holes. Do not overtighten — snug is sufficient.
6. 6

   Wipe excess silicone immediately

   Clean excess with isopropyl alcohol while still wet. Once cured, silicone is difficult to remove cleanly.
7. 7

   Install the glass into the rail

   After the rail silicone has skinned (30 to 60 minutes), the glass door can be lowered into the track.
8. 8

   Seal the rail interior

   Apply a final interior bead of silicone where the glass meets the rail to prevent water from tracking through the channel.

How to Keep a Shower Door Bottom Rail Clean and Mold-Free

Shower door bottom rails accumulate soap scum, hair, and mold faster than any other shower component — they trap standing water after every shower. Soap scum and mold accumulation in shower door tracks is the top maintenance complaint among homeowners (Houzz 2025). Daily squeegeeing and a weekly track cleaning with a soft brush prevents buildup from becoming a major problem.

Routine maintenance:

• Daily — Squeegee the glass after each shower and wipe the rail with the squeegee blade
• Weekly — Scrub the rail with a soft-bristle toothbrush and a 50/50 vinegar-water solution (on tile curbs only — not stone)
• Monthly — Check the rail for standing water. If water pools, clear the weep holes (small drain holes at the rail endpoints) with a toothpick
• Annually — Inspect silicone beads along the rail for cracks or mildew and recaulk as needed

When Does a Bottom Rail Need to Be Replaced?

A bottom rail needs replacement when corrosion, a failed finish, a cracked weep hole, or a warped section compromises its ability to direct water. Aluminum rails typically last 15 to 25 years in DFW conditions. Signs of rail failure include visible pitting or flaking of the finish, standing water that will not drain after weep-hole cleaning, and a loose or wobbly rail that no longer sits flat on the curb.

Replace the rail when:

• The finish is flaking, corroded, or no longer matches the rest of the hardware
• The rail is warped or no longer sits flat on the curb
• Weep holes are damaged or missing and cannot be cleared
• Hardware mounting points are stripped or broken
• You are already replacing the glass door and upgrading to a different style

Frameless Shower Doors: No Rail vs Threshold Options

Frameless shower doors eliminate the traditional metal bottom rail and use only a vinyl sweep clipped onto the glass edge. The sweep compresses against the tile curb when the door closes. This gives frameless doors their signature minimal look, but it depends on a properly pitched and level curb for water management. Frameless doors can be installed over a standard raised curb (most common in DFW) or over a linear-drain curbless pan for a true walk-in look.

Frameless bottom options:

Frequently Asked Questions

Also see our shower door sweep replacement guide and our aging-in-place bathroom glass solutions for low-threshold and curbless design options.
