Glass Shower Door Frame Removal: Going Frameless from Framed

Glass shower door frame removal is a two-stage project: professional removal of the old framed door (1 to 2 hours) followed by site inspection and re-measurement for a new frameless door (2 to 3 weeks for fabrication and install). Upgrading from framed to frameless increases perceived bathroom value 8 to 12% (Remodeling Magazine 2025) and 78% of remodeling homeowners choose frameless over framed when given a choice (Accio 2025). Total cost for frame removal plus frameless replacement in DFW runs $1,400 to $4,500 depending on glass thickness and hardware.

Removing an old framed shower door and replacing it with a frameless glass enclosure is one of the highest-impact bathroom upgrades you can make without changing any tile or plumbing. The old framed door is the single biggest visual element in most bathrooms — replacing it transforms the room. This guide walks through what frame removal involves, what damage to expect, what the replacement options are, and whether the investment pays off.

Why Are Homeowners Removing Framed Shower Doors in DFW?

DFW homeowners remove framed shower doors for three main reasons: to modernize an aging bathroom, to eliminate the persistent mildew and corrosion that framed doors accumulate, and to increase home value before sale. A framed metal door is the most dated-looking component in a 1990s or early-2000s bathroom — swapping it to frameless glass makes the entire room feel 15 to 20 years newer at a fraction of a full remodel cost.

Reasons driving frameless conversion:

• Dated aesthetic — Anodized aluminum frames in 1980s gold, 1990s brass, or 2000s brushed nickel are the strongest visual signal of bathroom age
• Mildew and corrosion — Framed doors trap water in the bottom track and between metal layers, leading to permanent mildew staining and finish failure
• Cleaning difficulty — Framed doors have dozens of joints, screws, and seal channels that collect soap scum and are nearly impossible to keep clean
• Home value — Remodeling buyers consistently pay more for homes with frameless shower doors over framed ones
• Natural light — Removing the frame brings visible daylight deeper into the bathroom

What Is Involved in Removing a Framed Shower Door?

Professional framed shower door removal takes 1 to 2 hours and follows a standard sequence: disconnect hardware, remove the door and fixed panels, unscrew the wall and curb channels, pry up and clean old silicone, and patch or prepare the holes left by anchors. Framed shower door removal takes 1 to 2 hours for a professional glass installer (NKBA 2025). The tile beneath and behind the old frame is almost always reusable — a frame change does not require new tile.

Typical removal sequence:

1. 1

   Remove the door from its hinges or track

   Slide bypass doors lift out of their top track; swing doors unpin at the hinge. Two installers handle the glass.
2. 2

   Remove fixed glass panels

   Any fixed side panels are unclipped or unscrewed from their frame channels and carried out.
3. 3

   Unscrew the wall jamb channels

   Vertical aluminum channels along both walls unscrew from their tile anchors. These leave 4 to 8 small anchor holes per side.
4. 4

   Remove the bottom threshold rail

   The aluminum track on the curb is pried up after cutting through the silicone bed. This is the messiest step — the silicone bond can be stubborn.
5. 5

   Remove the header (top rail)

   If a bypass door, the top rail is unscrewed from its anchors. Swing doors typically have no header.
6. 6

   Scrape all silicone residue

   Every silicone bead is removed from the tile so new hardware anchors cleanly. This takes 30 to 60 minutes alone.
7. 7

   Patch anchor holes

   Anchor holes in the tile are filled with color-matched grout or epoxy. Plan to anchor the new frameless hardware in different locations to avoid re-using old holes.

Can You Replace a Framed Shower Door with a Frameless One?

In most cases, yes. A frameless shower door can be installed in the same opening as a framed door, but the hardware anchor locations will be different. Frameless doors use fewer but much heavier-load anchor points (hinge clamps mounted to the wall) compared to framed doors (multiple lighter anchors along a continuous channel). The installer must verify adequate backing behind the tile at the new hinge locations — drywall alone is not enough to hold a frameless door.

Before committing to a frameless conversion, the installer checks:

• Wall backing — Solid wood blocking or a stud must be present behind tile where hinges will anchor
• Curb level — The tiled curb must be within 1/8 in. of level or the new frameless door will bind
• Wall plumb — Walls out of plumb by more than 1/4 in. over 72 in. require angled glass fabrication
• Opening dimensions — Frameless doors have minimum and maximum opening sizes based on glass thickness
• Anchor transition — Old framed anchor holes must be patched and new frameless anchors placed in solid backing

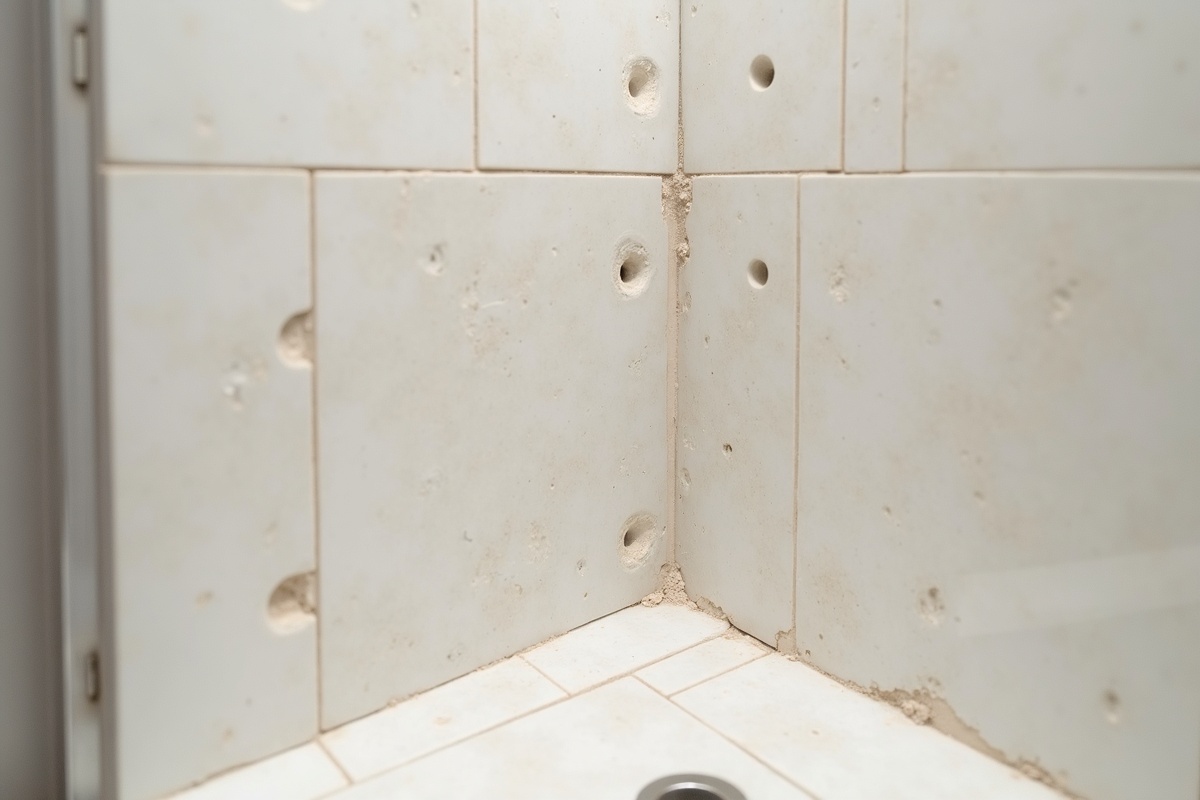

What Damage Might Removal Cause and How Is It Repaired?

Framed shower door removal typically leaves anchor holes in tile (4 to 12 per installation), silicone residue along every frame contact point, and occasionally a small tile chip where a stubborn frame piece was pried. None of this requires re-tiling. Holes are filled with color-matched grout or epoxy, silicone is scraped and cleaned, and any chips get repaired with tile-matching touch-up.

A reputable DFW glass installer includes minor damage repair in the removal quote. If significant tile damage is discovered mid-removal (cracked tile behind the frame, deteriorated curb), they stop and call you to make a decision before proceeding — the cost of tile repair is separate from the glass work.

How Much Does It Cost to Remove a Framed Shower Door in DFW?

Professional framed shower door removal alone costs $150 to $400 in DFW, depending on enclosure size and complexity. Most homeowners bundle removal with frameless installation, which runs $1,400 to $4,500 total (removal, new glass, hardware, and install). Labor is roughly 20% of the total — the glass and hardware are the larger cost. Glass thickness (3/8 in. vs 1/2 in.), hardware finish, and any custom cuts drive the total up.

Cost ranges for a framed-to-frameless conversion in DFW:

• Removal only — $150 to $400
• Basic frameless swing door — $1,400 to $2,200 (3/8 in. tempered, standard hardware)
• Premium frameless swing door — $2,200 to $3,200 (1/2 in. tempered, premium hinges/handles)
• Frameless enclosure with return panel — $2,800 to $4,500 (swing door + fixed panel)
• Frameless over curbless linear drain — $3,500 to $6,500 (requires pan modifications)

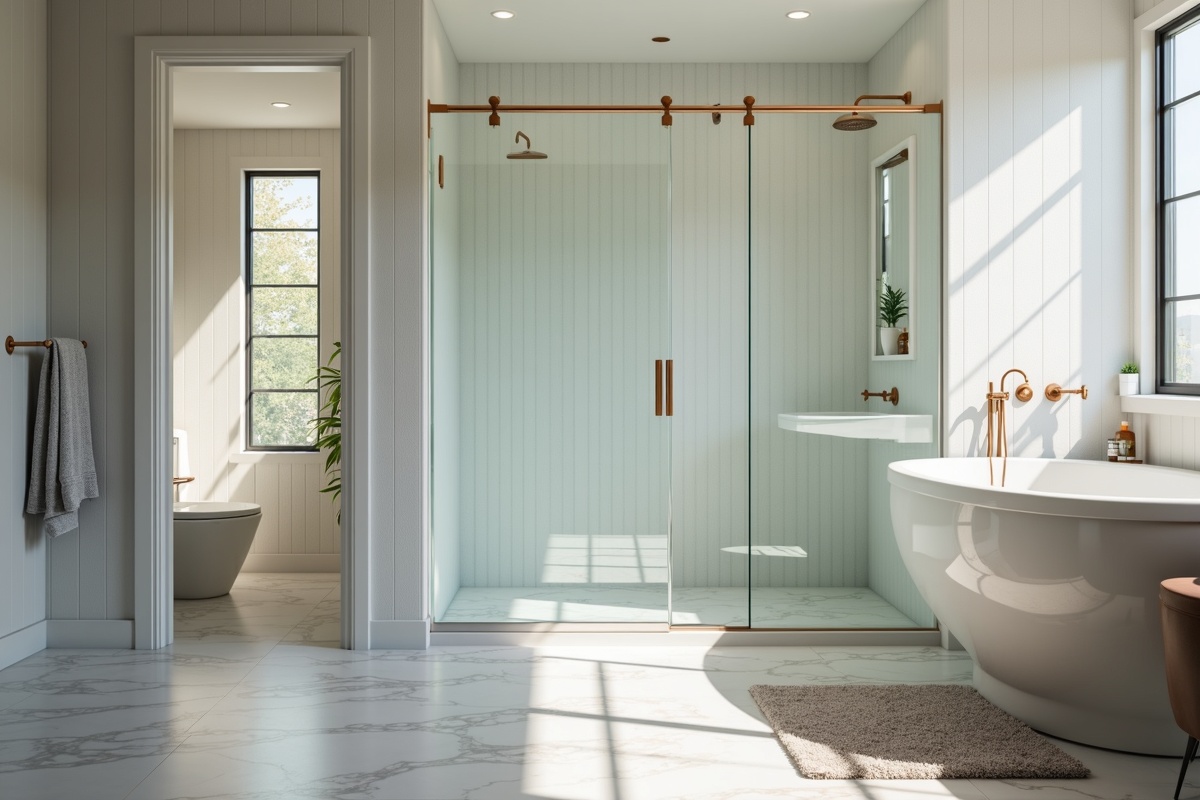

What Frameless Options Are Available After Frame Removal?

After removing the old framed door, you have the full range of frameless options:

• Single swing door — One glass panel on wall-mount hinges. Simplest, cleanest look.
• Swing door with return panel — Adds a fixed side panel for larger openings or return walls.
• Swing door with inline panel — Fixed panel beside the door for openings wider than 36 in.
• Neo-angle frameless — Three panels meeting at angles, ideal for corner showers.
• Curbless walk-in — Single fixed panel over a linear drain pan, no door at all.
• Hinged + fixed bypass — Hybrid configurations for large master showers.

Hardware finishes available in DFW:

• Polished chrome (traditional)
• Brushed nickel (most popular)
• Matte black (modern, high-demand)
• Brushed gold (warm contemporary)
• Brushed bronze (specialty)
• Unlacquered brass (aging patina look)

Is Going Frameless Worth the Cost of Removal and Replacement?

For most DFW homeowners, yes. The frameless upgrade is one of the highest-ROI bathroom projects short of a full remodel — perceived value adds 8 to 12% to bathroom appraisal. If you plan to sell in the next 5 years, a frameless conversion typically returns 70 to 90% of cost at resale. If you are staying, the daily benefit of a clean, modern, easy-to-maintain enclosure is significant. The main reasons to skip the upgrade are insufficient wall backing (requires tile-out work) or plans for a full bathroom remodel within 12 months.

When a frameless upgrade makes sense:

• The bathroom is otherwise in good condition (tile, fixtures, paint)
• You will live in the home 2+ more years
• The existing walls have adequate backing for frameless hinges
• The curb is level and the shower pan is sound

When to skip it:

• A full bathroom remodel is planned within 12 months (wait and do it all at once)
• Walls lack blocking and opening them is cost-prohibitive
• The tile is badly dated — a frameless door on 1980s mauve tile still looks dated

Frequently Asked Questions

Also see our frameless vs framed shower doors pros cons guide and our how to choose a shower door breakdown to finalize your style before ordering.

Ready to remove your old framed shower door and go frameless? Contact Infinity Glass & Glazing for a free DFW in-home consultation. We handle removal, repair, measurement, fabrication, and installation across Corinth, Denton, Frisco, Dallas, Fort Worth, and the surrounding metro.
