Shower door seals fall into five main categories: bottom sweeps, side wipes, magnetic strips, U-channel edge protectors, and jamb seals. Each type solves a different water intrusion problem and each is designed for a specific door style — frameless, semi-frameless, framed, or sliding. Matching the right seal to the right door is what keeps water inside the shower. Replacing a seal with the wrong profile is the single most common cause of repeat leaks.
A shower door without seals is just a panel of glass. The actual watertightness of your enclosure comes from small, inexpensive rubber and vinyl components that press against the glass, floor, and walls. These parts wear faster than any other component in the shower system, and knowing which one you have tells you how to inspect it, when to replace it, and what part to order.
Shower door seals should be replaced every 2-4 years under normal use conditions (NKBA Kitchen & Bath Industry Guidance, 2025). In a hard-water metro like DFW, that window shortens because mineral deposits stiffen rubber faster than in soft-water regions. Failed seals account for 45% of all shower door water leak complaints (HomeAdvisor Repair Data, 2025), which makes understanding seal types one of the most practical things a homeowner can learn.
What Is the Purpose of a Shower Door Seal?
A shower door seal creates a flexible, watertight barrier between the rigid glass door and the surrounding fixed surfaces — the floor threshold, the adjacent glass panels, and the wall jamb. The seal compresses when the door is closed, filling small gaps that would otherwise allow water to escape. Every leak point on a shower door is sealed by one of a handful of standard seal types.
Shower doors do not sit flush against the wall, floor, or adjacent glass. Manufacturing tolerances, glass thickness variation, and the need for the door to swing or slide all require small gaps in the design. Those gaps are bridged by seals. Without them, water would spill out at the hinge side, escape under the door, or run down the inside face of the glass and onto the bathroom floor.
Most modern frameless doors have between three and five separate seals doing different jobs — a bottom sweep, a side wipe, a magnetic closing strip, and sometimes additional U-channel edge protection. Knowing which one is the problem is the starting point for any repair.
What Are the Different Types of Shower Door Seals?
The five seal types are: bottom sweeps that close the gap between glass and floor, side wipes that seal the hinge-side or jamb-side door gap, magnetic strips that seal where two frameless doors or a door and fixed panel meet, U-channel seals that protect exposed glass edges, and jamb seals that fit into framed door channels. Each seal is designed for a specific glass thickness and door configuration.
| Bottom sweep |
| Side wipe |
| Magnetic strip |
| U-channel |
| Jamb seal |
The same shower may use three or four different seal types. Replacing the wrong one will not fix the leak, and ordering a replacement for a bottom sweep when the actual problem is the side wipe is one of the most common DIY mistakes.
Bottom Sweep Seals: The Most Common Shower Door Seal

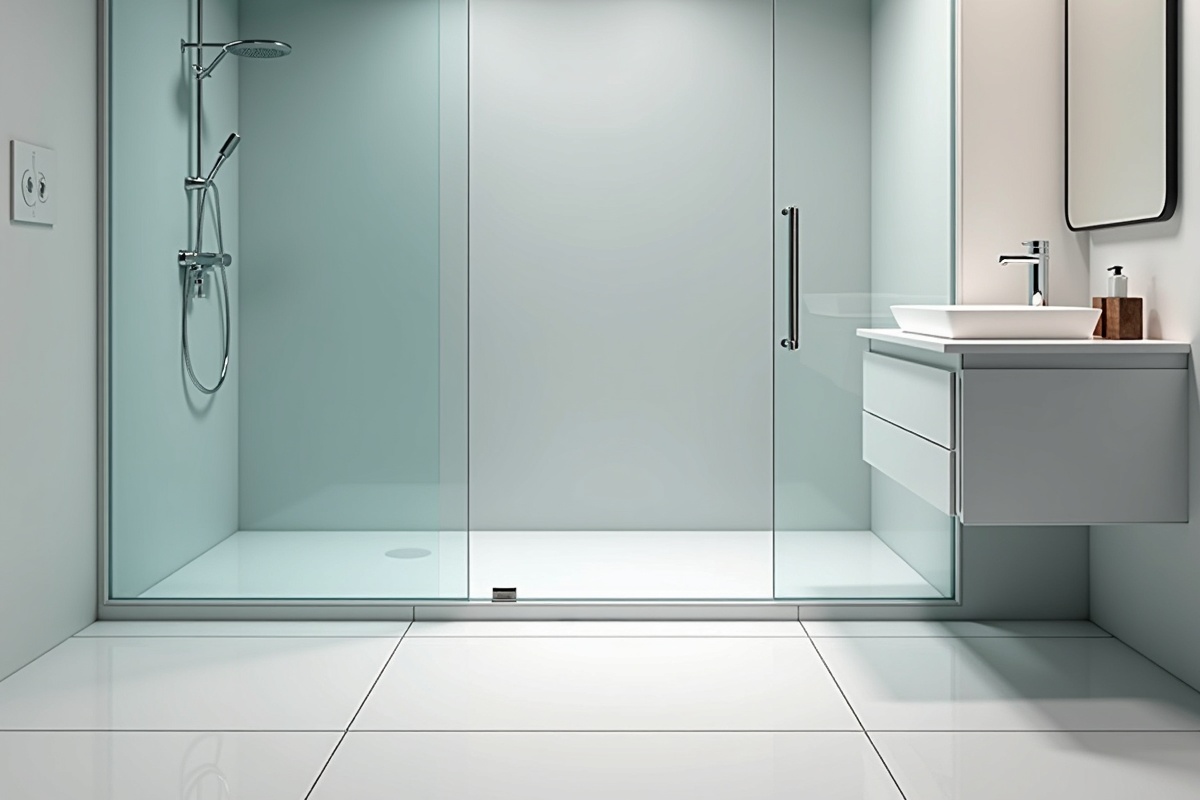

Bottom sweeps are clear or white vinyl strips that slide onto the bottom edge of a frameless shower door. A soft wipe-lip extends from the strip and drags across the floor threshold as the door swings, creating a watertight barrier at the base. Bottom sweeps wear out faster than any other seal because they contact the floor hundreds of times per year.
Bottom sweeps come in two main profiles. A U-channel sweep has a slot that grips the glass edge, with a single or double wipe lip that trails along the floor. A simple drip-rail sweep is a flat or curved strip that attaches to the door face and sheds water downward. Most DFW frameless installations use the U-channel style because it seals at the very bottom of the glass rather than partway up the door.
Bottom sweep materials:
- Clear vinyl — most common, flexible, UV-stable
- White or translucent vinyl — matches white or neutral tile
- Clear silicone — more durable, better in hot water
- Magnetic-backed sweeps — for doors closing against a metal threshold
Replacement is straightforward: slide the old sweep off the glass edge, cut a new strip to length, and slide it on. Silicone seals outperform vinyl seals in longevity by 60% in high-humidity bathroom environments (GlassBuild America Industry Report, 2024), so upgrading from vinyl to silicone at the next replacement is usually worth the small price difference.
Side Wipe Seals: Sealing the Gap Between Door and Glass
Side wipe seals are vertical vinyl strips that run the full height of the door along the hinge side or the closing edge, bridging the gap between the door and the adjacent fixed glass panel or wall. They prevent water from escaping sideways out of the enclosure during showering. Side wipes are typically less than 1/4 in. wide but carry a tall wipe lip that compresses against the adjacent surface.
Side wipes come in two orientations. An in-line side wipe attaches to the door edge and wipes against the fixed glass or wall. An offset side wipe attaches to the fixed panel and wipes against the moving door. The direction matters — installing a side wipe backward leaves a permanent gap that will not seal no matter how hard the door is closed.
In DFW homes with neo-angle or 90-degree frameless enclosures, side wipe seals are the most commonly missing or failed seal we encounter. Homeowners often do not realize the wipe exists until water appears running down the tile on the hinge side of the shower.
Magnetic Door Seals: How They Work and When to Use Them
Magnetic door seals are vertical strips embedded with small magnets running along the closing edge of a frameless door. When the door closes, the magnets pull the door tight against the adjacent glass panel or the opposite door, creating a continuous seal without any mechanical latch. Magnetic seals are unique to frameless glass shower configurations.
Two common magnetic configurations exist. A door-to-door magnetic pair is used on double swing doors or French-style frameless enclosures, where both doors close against each other. A door-to-panel magnetic strip is used on a single swing door closing against a fixed glass return panel. Both systems use a matched pair of magnetic strips so the two faces attract and hold closed.
Magnetic strips wear out when the embedded magnets weaken over time or when the rubber backing deforms from repeated compression. If your frameless door no longer pulls itself closed the last 1/2 in. the way it used to, the magnetic strip is usually the cause — not the hinges.
U-Channel Seals: Protecting Glass Edges on Frameless Doors
U-channel seals are protective strips that wrap around exposed glass edges on frameless shower fixed panels, especially return panels and knee walls. They prevent water from running down the edge of the glass and into the wall or floor joint below. U-channel seals double as edge protection against chips from accidental contact.
Unlike wipe seals, U-channel seals are not a moving part — they install once and stay in place for years. They are most commonly used on the top edge of a fixed glass panel that butts against the ceiling or a return wall, and along the vertical joint where two panels meet at a mitered or butt corner.
In DFW, we install U-channel seals on nearly every frameless enclosure project because the exposed bottom corner of a return panel is a common water infiltration point over time. A $5 strip of U-channel prevents hundreds of dollars of future grout or drywall damage.
How to Choose the Right Seal for Your Shower Door Type
Choosing the right seal starts with identifying your door style (frameless, semi-frameless, framed, or sliding), measuring your glass thickness, and photographing the existing seal profile. The replacement must match glass thickness to within 1/16 in. and must match the original wipe lip direction. Ordering by profile photo avoids 90 percent of wrong-part returns.
- 1
Identify the door type
Frameless doors have no metal framing around the glass. Semi-frameless doors have framing at the top and bottom only. Framed doors have metal around the full perimeter. Sliding (bypass) doors ride on a top or bottom track with two parallel panels. - 2
Measure glass thickness
Frameless doors are typically 3/8 in. or 1/2 in. thick. Semi-frameless are usually 3/8 in. Framed doors are 1/4 in. or 5/16 in. Measure precisely with calipers if possible — a wrong thickness will not seat in the seal channel. - 3
Photograph the existing seal in cross-section
Pull back the old seal just enough to see its channel shape and wipe-lip orientation. Photograph the end profile. This is the single most important reference for ordering the right replacement. - 4
Measure seal length
Measure along the glass edge where the seal seats. For bottom sweeps, this is the door width minus 1/16 in. For side wipes, it is the full door height. - 5
Match material to environment
In hard-water DFW, silicone seals outlast vinyl. For doors with high daily use, upgrade to silicone or premium magnetic strips.
45%
of shower door leak complaints trace to failed seals (HomeAdvisor, 2025)
FAQs About Shower Door Seals
How often should shower door seals be replaced?
Bottom sweeps and side wipes should be replaced every 2 to 4 years under normal use (NKBA, 2025). In DFW's hard-water environment, 18 to 30 months is more realistic — minerals stiffen the rubber and accelerate cracking. Magnetic strips last 5 to 8 years, and U-channel edge protectors can last 10 years or more because they do not move. Inspect all seals every six months for cracking, stiffening, or visible separation from the glass.
Can I replace shower door seals myself?
Yes, most seal replacements are DIY-friendly. Bottom sweeps slide on and off the glass edge without tools. Side wipes press-fit onto the door edge. Magnetic strips peel off and replace with adhesive backing. Jamb seals in framed doors are slightly more involved because they compress into the metal channel. The main requirement is identifying and ordering the exact replacement profile for your glass thickness — bringing the old seal or a cross-section photo to a glass supplier solves this almost every time.
What material are the best shower door seals made of?
Silicone is the best all-around material for DFW conditions — it resists hard-water mineral buildup, holds its flexibility through years of hot water exposure, and does not yellow the way vinyl does. Clear vinyl is the most common and lowest-cost option and works well if replaced on schedule. Polycarbonate and EPDM rubber are used for heavier-duty industrial seals but are less common in residential applications. Silicone costs about 30 percent more than vinyl but typically lasts 60 percent longer.
Do frameless shower doors use the same seals as semi-frameless doors?
Not always. Frameless doors use seals that clamp or slide directly onto the glass edge — no metal frame to fit into. Semi-frameless doors use a mix: the top and bottom may have seals designed to sit inside metal channels, while the hinge or jamb side uses the same style of wipe seal as a frameless door. When replacing, match the seal to the specific edge of the door it came off — do not assume a frameless-style bottom sweep will work on the bottom of a semi-frameless door.
How do I know which seal my shower door needs?
Start by identifying where the leak is happening. Water escaping under the door means the bottom sweep is the issue. Water running down the hinge-side wall or out the side of the enclosure points to a side wipe failure. A frameless double door that no longer pulls itself closed indicates a weakened magnetic strip. Once you have located the leak, photograph the failing seal and bring the photo to a glass supplier or order online from a retailer that filters by glass thickness and seal profile.
Also see our shower door seal replacement guide and our when to replace shower door hardware article for more on maintaining your enclosure long term.
