Custom Glass Shelf Installation in DFW: Floating Shelves & Display Shelving

Custom glass shelves in DFW cost $15–$35 per linear foot in materials plus installation, with typical project totals running $150–$500 for a set of 2–4 shelves installed (HomeGuide 2025). Standard 1/4 in. tempered glass shelves safely support 25–40 lbs per shelf bracket pair (GlassBuild 2025); 3/8 in. tempered shelves support 50–75 lbs; 1/2 in. tempered shelves support 100+ lbs. Custom glass shelf fabrication lead time in DFW is typically 3–7 business days.

Glass shelves do a few things wood shelves cannot. They disappear visually — the eye registers the items on the shelf, not the shelf itself — so they work in spaces where a solid shelf would read as heavy or dated. They handle water exposure better than wood, which makes them the default for bathrooms. They can be cut to any dimension in a few days at a local shop, which makes them straightforward for odd-sized niches and alcoves. And when edge-polished, they have a finished, architectural quality that makes them appropriate for retail display and higher-end residential projects.

This guide covers glass shelf types, weight capacity by thickness, installation methods for different wall substrates, cost ranges, and the edge options available on custom fabrication.

Why Glass Shelves Are Better Than Wood for Certain Applications

Glass shelves outperform wood in three specific situations: wet environments (bathrooms, shower niches, kitchens near sinks) where wood warps and mildews; display applications where a shelf that "disappears" visually is preferable; and odd-sized alcoves or niches where custom fabrication turnaround matters. Wood is usually the right choice for bookshelves, structural built-ins, and loadings above 100 lbs per shelf.

Situations where glass shelves are the correct specification:

Bathroom shelving and shower niches. Glass handles continuous water exposure indefinitely; wood swells, warps, and eventually rots. Tempered glass shelves in a shower niche are a 20+ year solution.

Retail and showroom display. A glass shelf shows the product, not the shelf. For jewelry, eyewear, watches, curated boutique retail, and any category where the product is the hero, glass wins.

Curio cabinets and built-in display niches. When the point of the shelf is to light and display objects from below with LED lighting, glass is mandatory — the light passes through.

Narrow niches and pass-throughs. Custom-cut tempered glass is typically available in 3–7 business days; custom milled and finished wood can take 2–4 weeks. For a small alcove that needs a shelf quickly, glass is faster.

Kitchens with limited daylight. Over-sink and over-counter shelves can block significant daylight if solid. Glass shelves let light through while still providing storage.

Wood is still the right answer for primary bookshelves, structural built-ins that need to carry a TV or heavy appliances, and projects where the wood grain is itself the design feature.

Types of Glass Shelves Available for DFW Homes and Businesses

Glass shelves are fabricated in three main configurations: bracket-mounted shelves (supported by visible or concealed brackets anchored to the wall), floating shelves (supported by hidden hardware bolted into the wall with the shelf sliding onto the hardware), and channel-mounted shelves (set into a continuous aluminum or stainless channel anchored to the wall). Each configuration has different weight capacity, installation requirements, and visual weight.

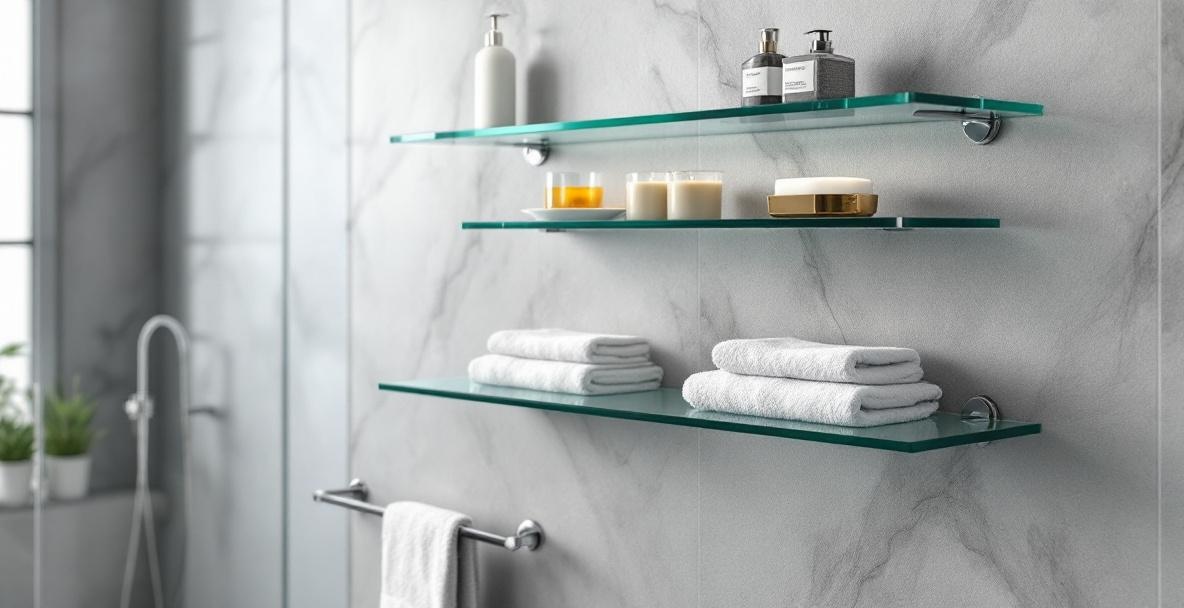

Bracket-mounted shelves. The most common configuration. Two metal brackets (chrome, brushed nickel, matte black, or brushed brass) are anchored to the wall studs. The glass shelf rests in or on the brackets, often with a rubber pad to prevent direct glass-to-metal contact. Brackets typically carry 25–75 lbs per pair depending on bracket style and wall anchoring.

Floating shelves with concealed hardware. Steel rods or a hidden back plate are anchored into the wall studs. The glass shelf is drilled with matching holes and slides onto the hardware. No visible supports. Carries 10–40 lbs per shelf depending on hardware and glass thickness. The architectural premium configuration — cleanest look, highest fabrication cost.

Channel-mounted shelves. A continuous U-channel (aluminum or stainless) is anchored along the back wall and optionally along side walls. The glass sits in the channel on the full back edge — far higher load capacity than bracket mounting because the load distributes across the full length rather than two points. Used for heavier applications and retail display.

How Are Floating Glass Shelves Installed Safely?

1. 1

   Locate Wall Studs or Reinforce Substrate

   Glass shelf brackets must anchor into wall studs for full load capacity. Use a stud finder to locate studs on center. If no studs are available at the target shelf location, install wall blocking behind drywall or use heavy-duty toggles rated for the shelf load plus a safety factor of 2x.
2. 2

   Mark Shelf Height and Bracket Positions

   Mark a level line at the desired shelf height. Mark bracket positions 2-4 in. from each end of the glass shelf, spaced evenly. For shelves longer than 36 in., add a third bracket in the middle.
3. 3

   Install Brackets or Rod Hardware

   For bracket-mounted shelves, anchor brackets with the supplied fasteners into studs or into heavy-duty wall anchors. For floating shelves, install the concealed rod hardware or back plate into studs, checking for level across all mounting points. For channel-mounted shelves, anchor the continuous channel along the marked line.
4. 4

   Test Fit the Glass

   Before permanent installation, set the glass shelf onto the brackets or onto the rod hardware to confirm fit. The glass should sit flat with no rocking. Check that the shelf is level in both directions.
5. 5

   Apply Rubber Pads and Final Set

   Apply small rubber or silicone pads between the glass and any metal bracket surface to prevent direct contact that could scratch the glass or create stress points. Set the glass permanently onto the hardware.
6. 6

   Check Load and Verify Stability

   Load the shelf with a test weight at 80% of the rated capacity and check for any bracket deflection, wall flex, or glass bow. A properly installed shelf should show no visible movement under typical load.

What Glass Thickness Is Required for Shelves That Hold Weight?

Glass shelf thickness is specified based on load: 1/4 in. tempered for light duty (25–40 lbs), 3/8 in. tempered for medium duty (50–75 lbs), 1/2 in. tempered for heavy duty (100+ lbs), and 3/4 in. tempered or laminated for oversized or unsupported-span shelves. All glass shelves must be tempered for safety — if the glass breaks under load, tempered glass breaks into small granular pieces rather than sharp shards.

For a typical residential bathroom shelf holding toiletries, 1/4 in. tempered is sufficient and is the standard specification. For a kitchen or office shelf holding books, picture frames, or display items, 3/8 in. tempered is the default. For retail display, commercial applications, or any shelf that may carry unanticipated heavy loads, 1/2 in. tempered is specified.

All glass shelves in this guide are tempered (fully heat-treated to 4-5x the strength of annealed glass) and meet CPSC 16 CFR 1201 Category II safety glazing standards (CPSC 2024).

How Much Do Custom Glass Shelves Cost in DFW?

Custom glass shelves cost $15–$35 per linear foot in materials, with edge finishing, cut-outs, and holes adding to the base cost. A typical 36 in. bathroom shelf in 1/4 in. tempered glass with a polished edge runs $60–$80 in materials; a 48 in. kitchen shelf in 3/8 in. tempered with a beveled edge runs $120–$160 in materials. Installation labor adds $50–$150 per shelf depending on wall substrate, bracket type, and number of shelves installed at one time.

Per-shelf cost breakdown:

• Glass materials (tempered, polished edge): $15–$35 per linear foot
• Beveled edge upgrade: +$5–$15 per linear foot
• Eased / pencil / ogee edge upgrades: +$3–$10 per linear foot
• Holes (for through-glass brackets or cable displays): $15–$40 per hole
• Cut-outs / notches: $25–$75 per notch
• Standard brackets (per pair): $25–$125
• Premium hardware (concealed rod systems, designer brackets): $75–$250 per set
• Installation labor (2–4 shelf project): $150–$400

Cost factors that drive the final quote:

• Glass thickness (1/4 in. to 3/4 in.)
• Edge finish (polished, beveled, eased, ogee)
• Shelf length and width
• Number of shelves in the project
• Wall substrate (drywall on wood studs is straightforward; concrete, tile, or masonry walls add labor)
• Hardware specification (visible brackets vs concealed floating hardware)

Edge Options for Custom Glass Shelves: Polished, Beveled, and More

Custom glass shelves are edge-finished in four main options: flat polished (smooth, slightly shiny — the standard finish), beveled (angled cut creating a 1/4 in. to 1/2 in. chamfer — premium architectural look), eased / pencil edge (slight rounding — most subtle finish), and ogee (profiled decorative edge — traditional look). Flat polished is specified on 70%+ of DFW residential glass shelf projects; beveled is the premium upgrade on transitional and traditional projects.

Edge finish options in detail:

• Flat polished. The shelf edge is ground and polished to a smooth, slightly reflective finish. The edge is perpendicular to the glass face — a clean 90° angle. Most common finish on residential and retail applications.
• Beveled. The top edge (or both edges) is cut at a 45° angle and polished, creating a visible chamfer. Width of the bevel is typically 1/4 in., 3/8 in., or 1/2 in. Beveled edges catch light and add an architectural detail.
• Eased / pencil edge. The corners of the edge are slightly rounded rather than sharp. The effect is very subtle — from a normal viewing distance it reads as a slightly softer flat-polish.
• Ogee. A profiled cut that creates an S-curve or decorative profile along the edge. Traditional look, more common on kitchen and dining room applications than modern projects.
• Miter-cut. Not strictly an edge finish — a 45° cut on the end of a shelf so that two pieces can meet at a corner without a visible joint. Used on inside corners of alcoves and niches.

Polished edges cost more than the factory "seamed" edge from a glass cutter but should be specified on any shelf where the edge will be visible. Seamed edges (slightly dulled cut edges without polishing) are acceptable only on shelves fully inserted into channels where the edge is never visible.

Design Ideas: Glass Shelves in DFW Bathrooms, Living Rooms, and Offices

The most effective glass shelf installations in DFW homes match the bracket finish to other hardware in the room, use consistent glass thickness across multiple shelves, and set shelf heights on a clear visual rhythm — 12 in., 14 in., or 16 in. between shelves depending on what's being displayed. LED strip lighting mounted to the underside of the shelf above (or to the top of the shelf below) adds a high-end display effect at low cost.

Design combinations commonly specified on DFW projects:

• Frosted glass shelves with brushed nickel brackets on either side of a bathroom vanity mirror. Transitional, light, current.
• Clear glass shelves with matte black floating hardware in a home office niche. Modern, minimalist.
• Beveled clear glass shelves with brushed brass bracket hardware in a transitional living room built-in. Warm, architectural.
• Back-painted black glass shelves with LED under-lighting in a wine bar or bourbon display. Dramatic, high-contrast.
• Channel-mounted clear glass shelves full wall width in a walk-in closet. Shoes, handbags, or folded items visible with zero visual shelf weight.
• Clear glass shelves in a shower niche with a stone or tile back wall. Waterproof, low-profile, 15+ year durability.

Frequently Asked Questions About Custom Glass Shelves in DFW

Also see our guides on custom glass tabletops in Dallas, glass cabinet doors custom fabrication, and back-painted glass bathroom installation.

Planning custom glass shelves for a DFW home, office, or retail space? Contact Infinity Glass & Glazing for measurement and a custom quote. We fabricate and install polished-edge, beveled, and custom-profile tempered glass shelves across the DFW metroplex from our Corinth, TX shop.
